P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building

  • 1
  • 2
  • 3

Brand Name : Minvol

Model Number : MH-G-2R2G2B-P31.25*31.25E

Certification : CE/RoHS/FCC

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 200sqm/day

Delivery Time : 15-25 Days

Packaging Details : Carton

LED brand : Epistar

Input voltage : DC36-48V

Brightness : 9200CD/sqm

LED Color : RGB

Usage : Outdoor,Indoor

Screen dimension : Can be customized

Display function : Video,animation,graphics

Contact Now

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building



 Product description


    LED outdoor advertising screen has the characteristics of light weight, high brightness, high transparency and low wind loading, which breakthroughs many restrictions of building wall for traditional LED display. LED louver screen integrates the advantages of high resolution, high quality and high gray level of conventional LED display, fully combines centralized coontrol and long-distance transmission technology, which have totally solved the transmission problem caused by signal interruption of LED display. The screen adopts aluminum alloy light bar splicing, each group of light adopts signal isolation technology, even single bar has been broken, still can not influence cach other. The unit screen has high heat dissipation efficiency, no need air conditioning, and can be installed in the front or rear of building facade, it makes the project application more simple, more flexible, more efficient. lt is the best choice of indoor and outdoor display screen.



Product parameters



Product Name: P31.25*31.25 LED louver screen
Item No: MH-G-2R2G2B-P31.25*31.25
Light Source Brand: Epistar
Light Source Model: 346 2R2G2B DIP
Size/Unit: 1500mm(L)*500mm(H)
Viewing Angle: H120°/V60°
Power(W)/㎡: 384W/sqm
Average Power/㎡(W): 128W/sqm
Voltage: DC36-48V
Pixel Pitch(mm): 31.25mm(H)*31.25mm(V)
Light Bar Size(mm): 14mm*1500mm
Resolution: 16pixel*48pixel/Unit
LED quantity/㎡(PCS):  1024pixel/sqm
Brightness(CD/㎡): ＞7200CD/sqm
Grey Scale: 65536
Refresh Rate(Hz): ＞5000Hz
Transparency: ＞56%
Weight: 10.8kg/sqm
Protection Grade: IP67
Operation Temperature: -20℃~50℃
Life Time: ≥50000 hours
Related Cert.: CE RoHS FCC



Product  pictures



P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building

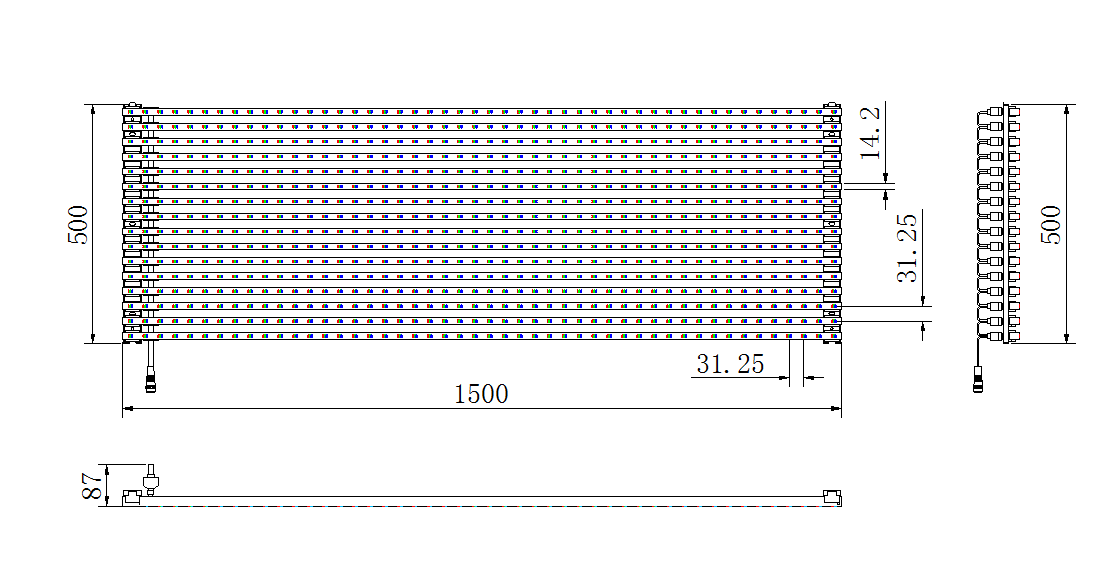

Module size


P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building





Product Installation Schematic



P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building



Control Diagram



P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building

Projects pictures





P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building





Exhibition pictures
P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building
P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building
P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building

P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building
P31.25 Waterproof Transparent Grid LED Display Mesh LED grid Screen for Glass Window Building
