Grille High Brightness Advertising LED Board 260W Waterproof

Name: Grille High Brightness Advertising LED Board 260W Waterproof
Brand: Minvol
Price: 1 USD

Buy cheap Grille High Brightness Advertising LED Board 260W Waterproof product

Brand Name : Minvol

Model Number : MH-M-SMD-P16

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 200sqm/day

Delivery Time : negotiable

Packaging Details : negotiable

LED brand : Epistar/ Cree

Power : 260W

Color : RGB SMD

Pixel pitch : P16*16

Usage : Outdoor

Display function : Video

Screen dimension : Customized

Application : Outdoor Advertising Led

Contact Now

Grille High Brightness Advertising LED Board 260W Waterproof

Product parameters:

Transparent LED mesh Screen P16 DIP Outdoor Waterproof High brightness Colorful Advertising LED Board

LED media screen has the characteristics of light weight, high brightness, high transparency and low wind loading, which breakthroughs many restrictions of building wall for traditional LED display. LED louver screen integrates the advantages of high resolution, high quality and high gray level of conventional LED display, fully combines centralized coontrol and long-distance transmission technology, which have totally solved the transmission problem caused by signal interruption of LED display. The screen adopts aluminum alloy light bar splicing, each group of light adopts signal isolation technology, even single bar has been broken, still can not influence cach other.

P16 LED mesh screen	MH-M-SMD-P16
Pixel Pitch	16mm
Pixel Density	3906/sq.m.
Pixel per Tile	64x32
LED Configuration	SMD 3-in-1
Brightness(CD/㎡)	>7800CD
Viewing Angle	H120°/V120°
Transparency	＞55%
Tile dimension(WxHxD)	1024mm x 512mm x 88mm
Tile Weight	7.5Kg
IP(Front & Rear)	IP66
Grey Scale	16bit
Scan	Static
Refresh Rate	>11520Hz
Voltage	AC85V--AC265V
Max Power per Tile	800W /M2 260W/average power
Control Mode	Computer or SD card
Strip Orientation	Horizontal or Vertical
Installation	Frame installation
Lifetime	≥100,000h
Operating Temp/Humidity	-40℃--45℃,10%--90%RH
Storage Temp/Humidity	-40℃--60℃,10%--90%RH

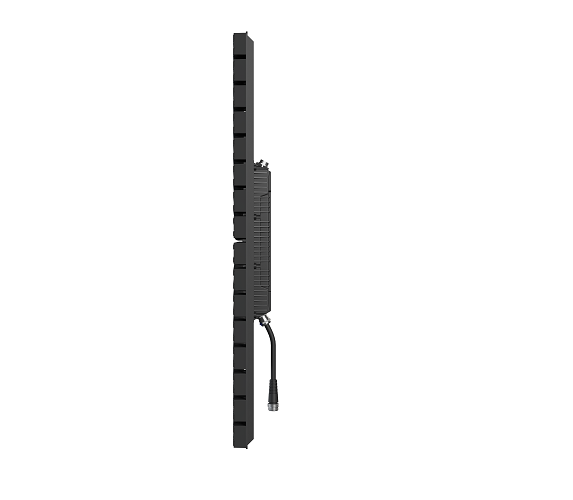

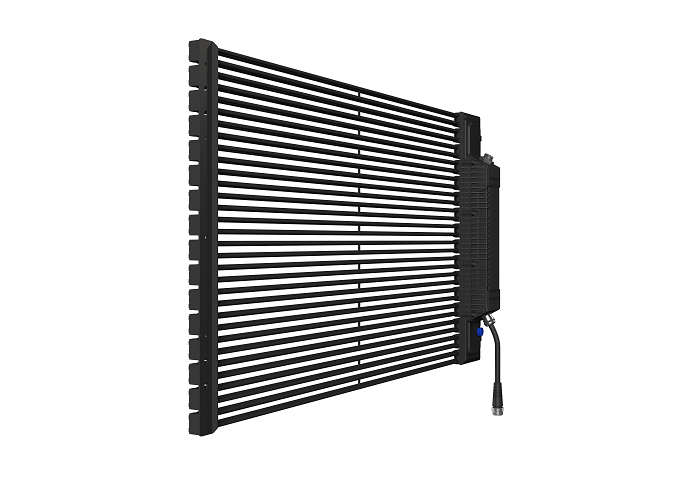

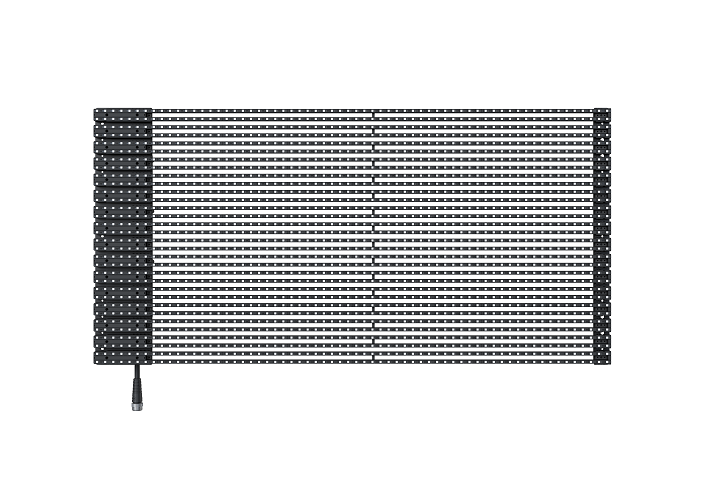

Product pictures:

Grille High Brightness Advertising LED Board 260W Waterproof

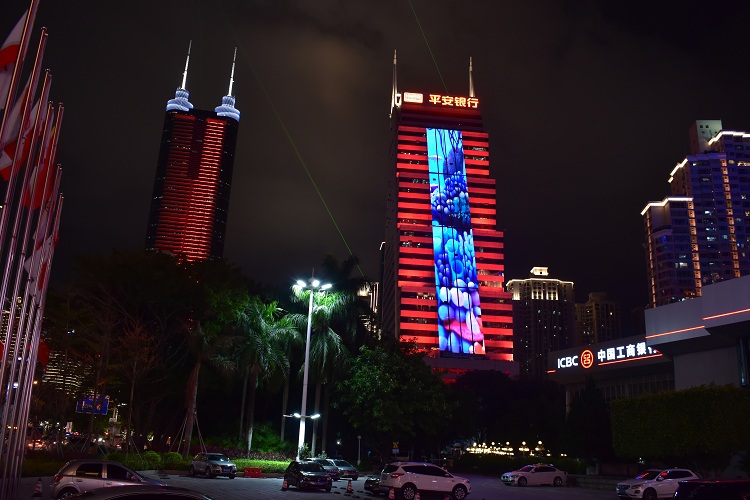

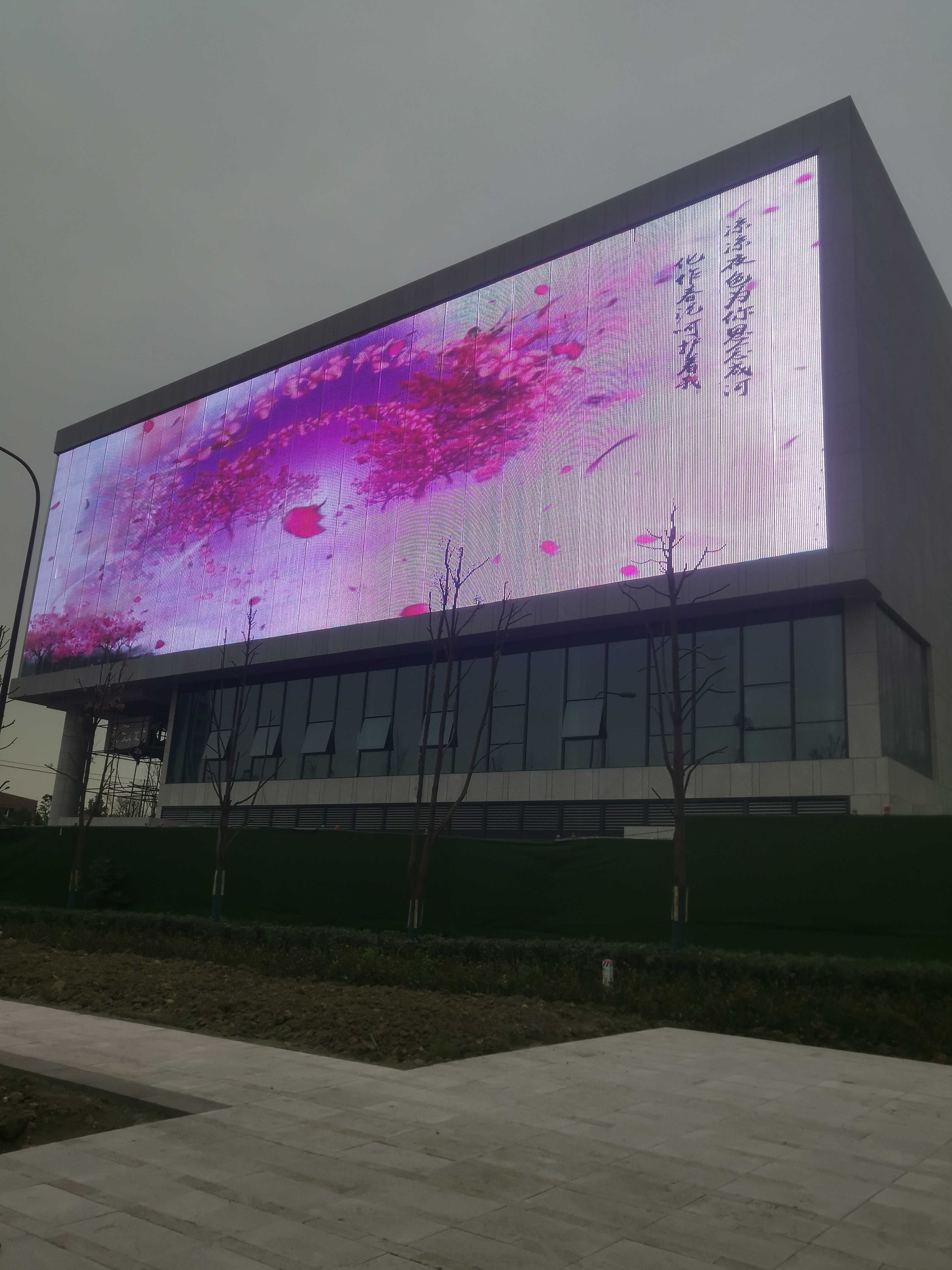

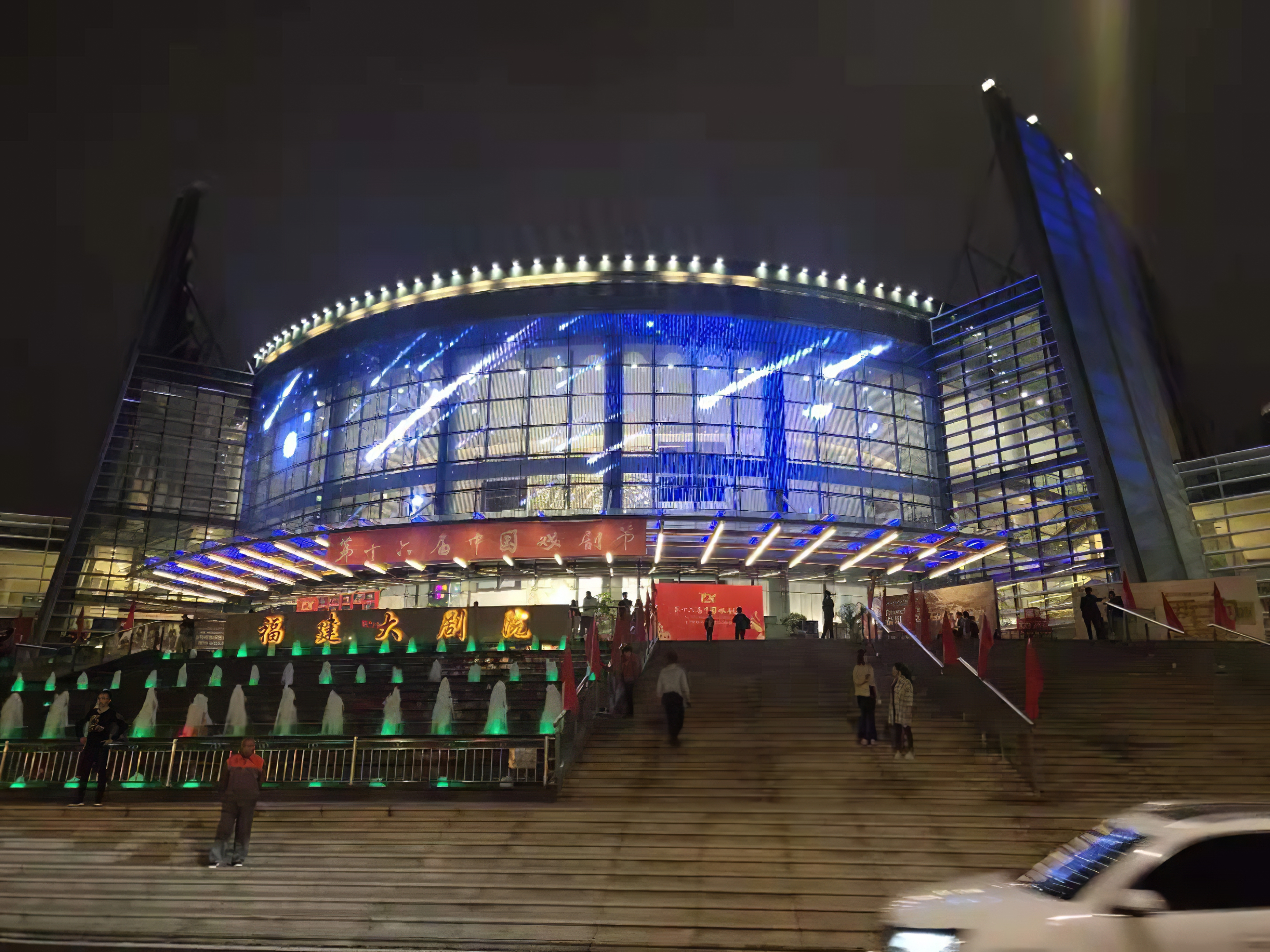

Projects pictures:

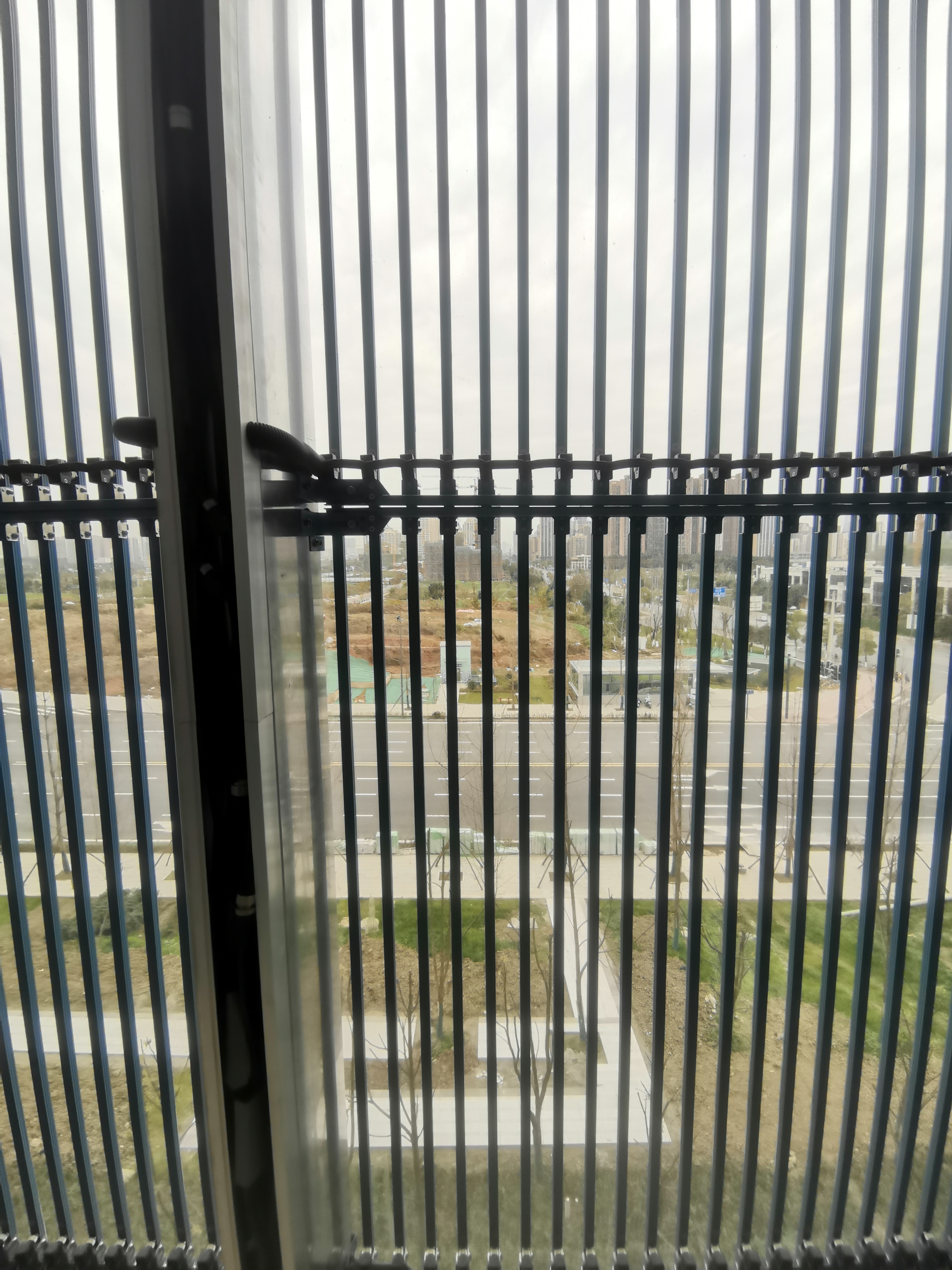

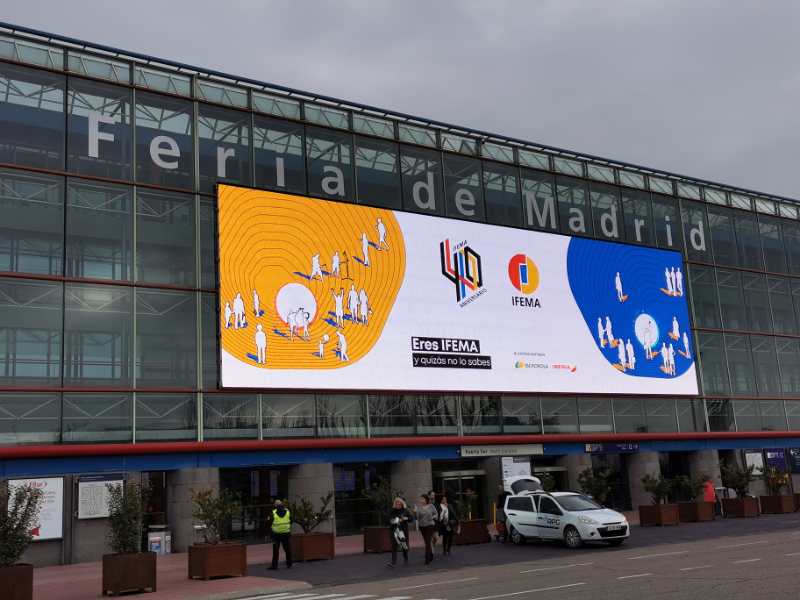

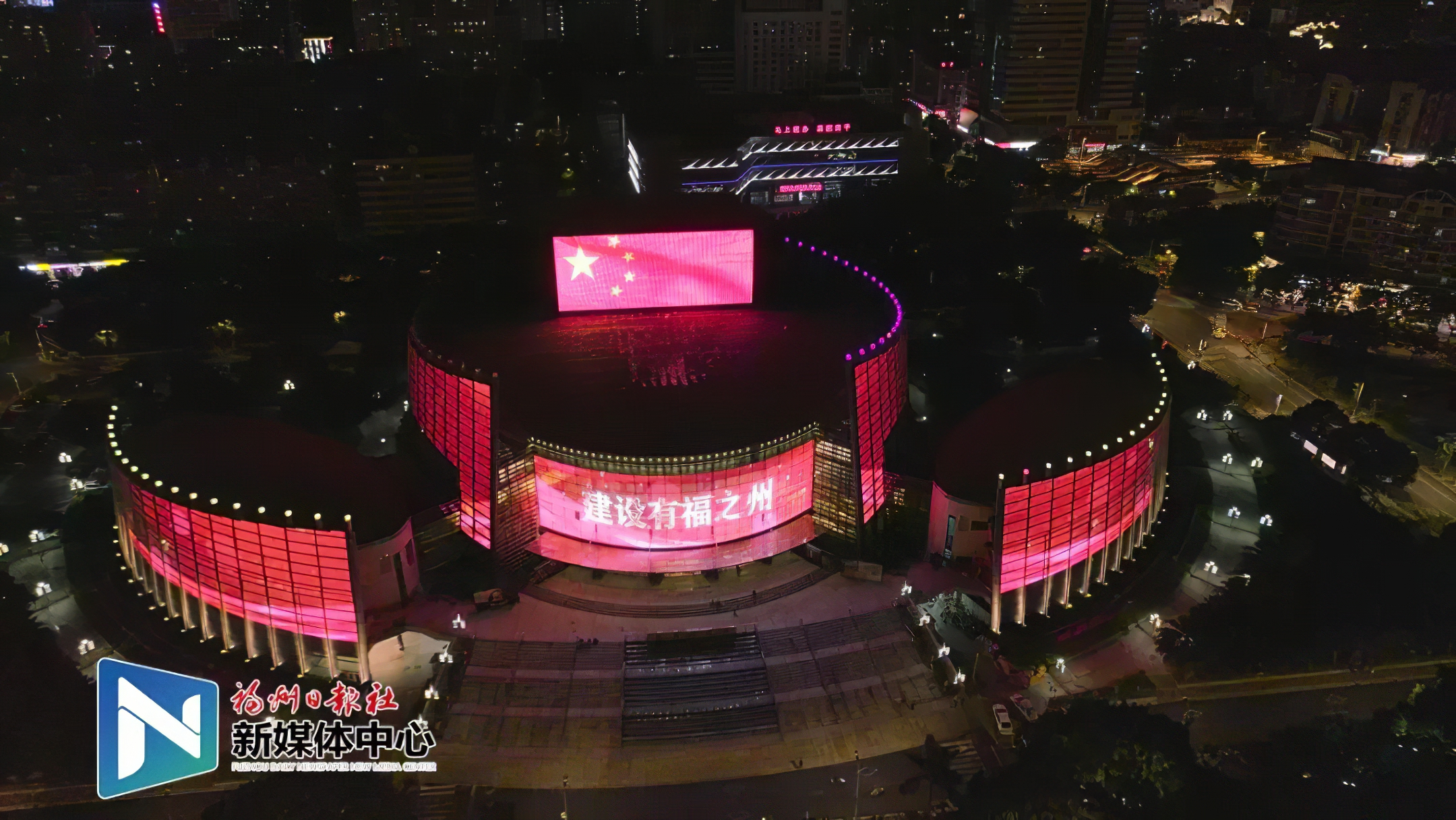

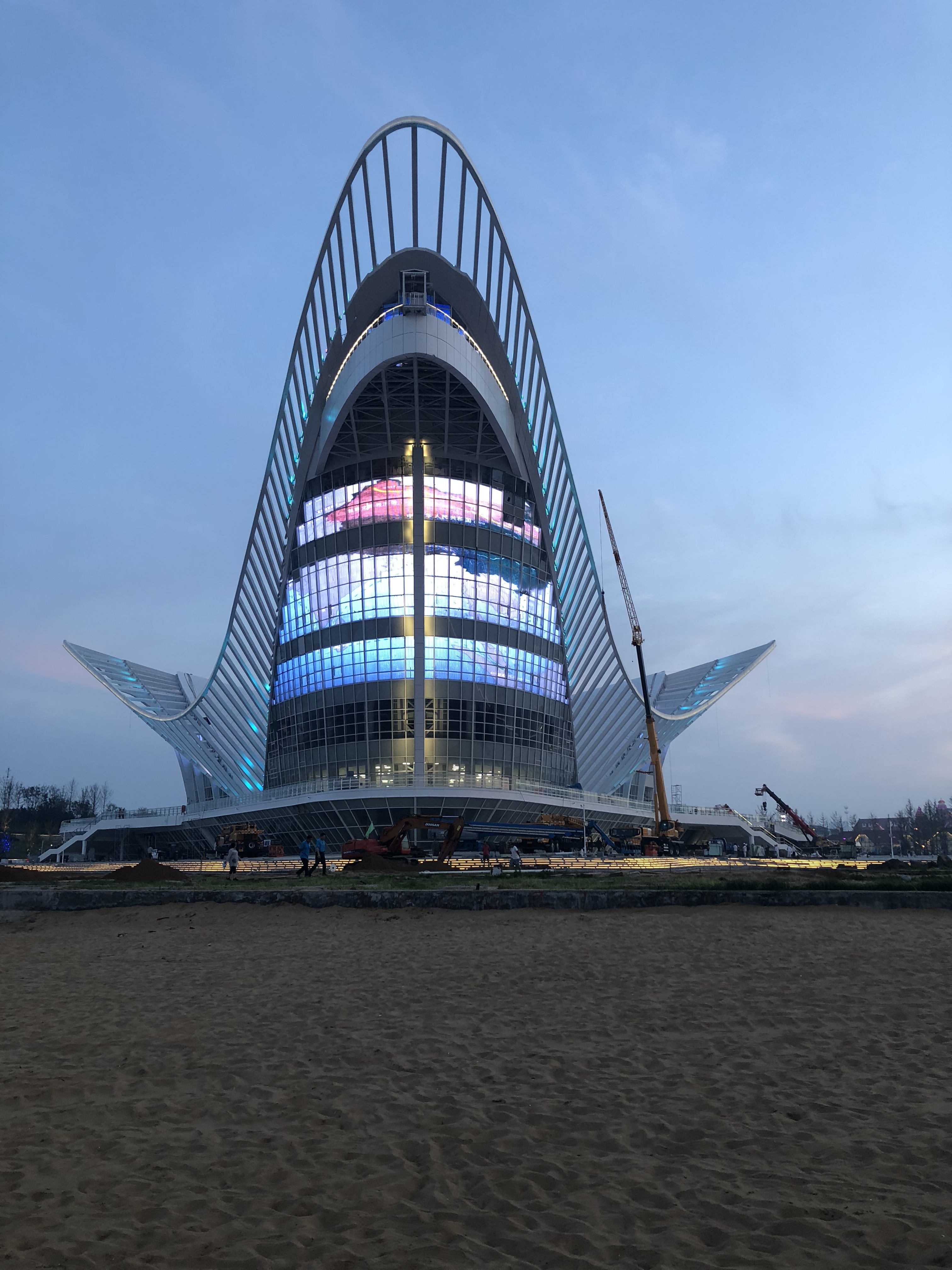

Installation picture

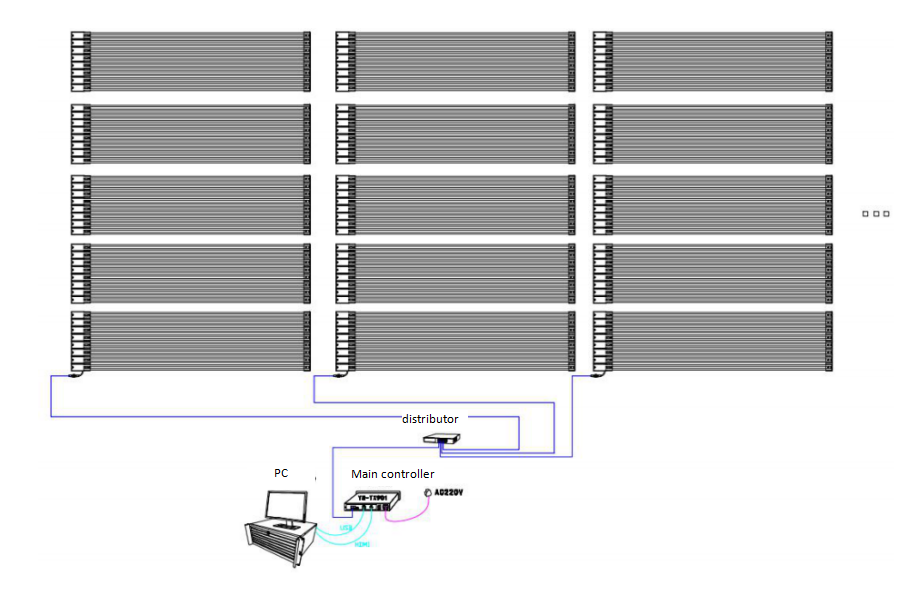

Control diagram

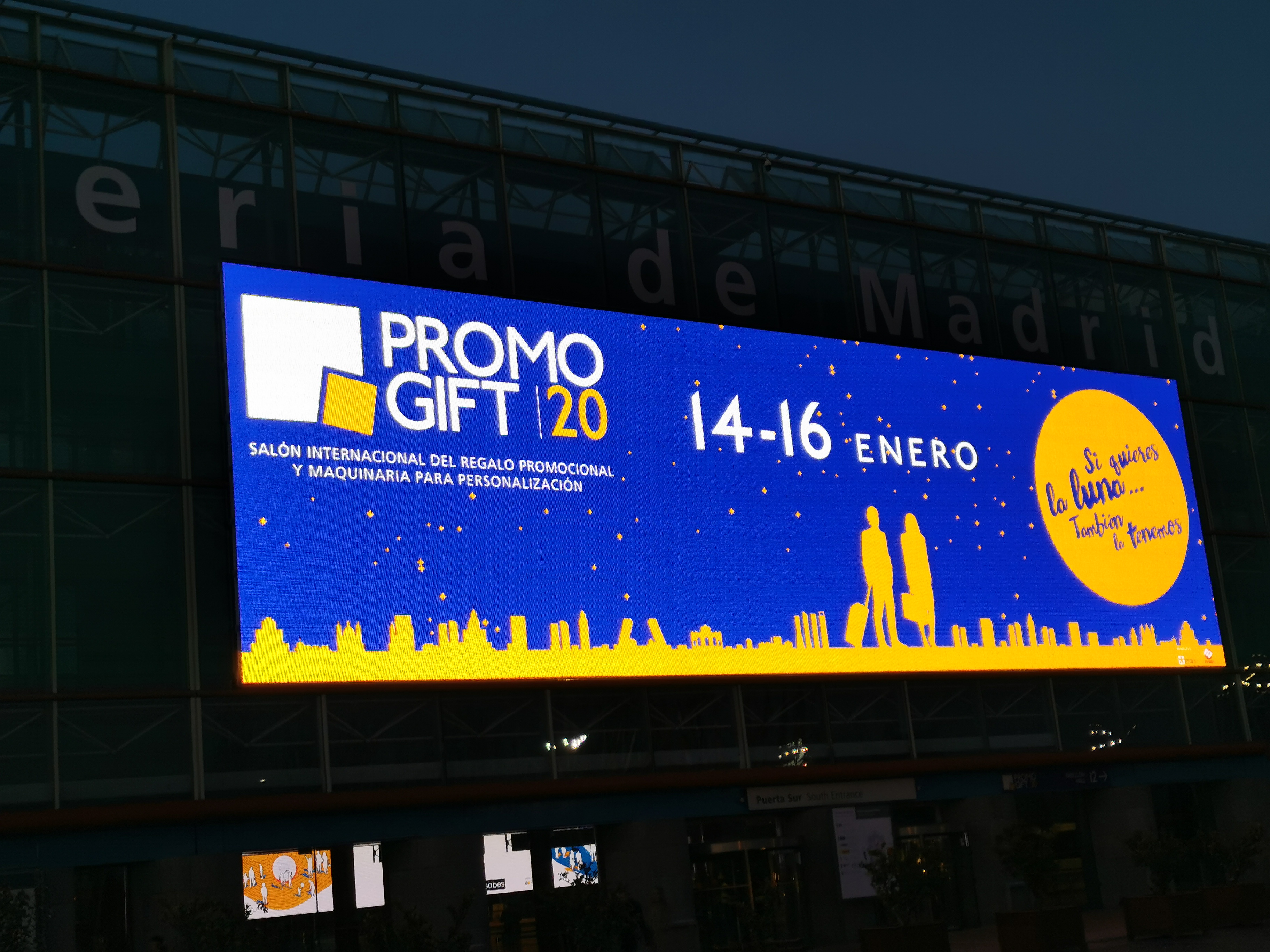

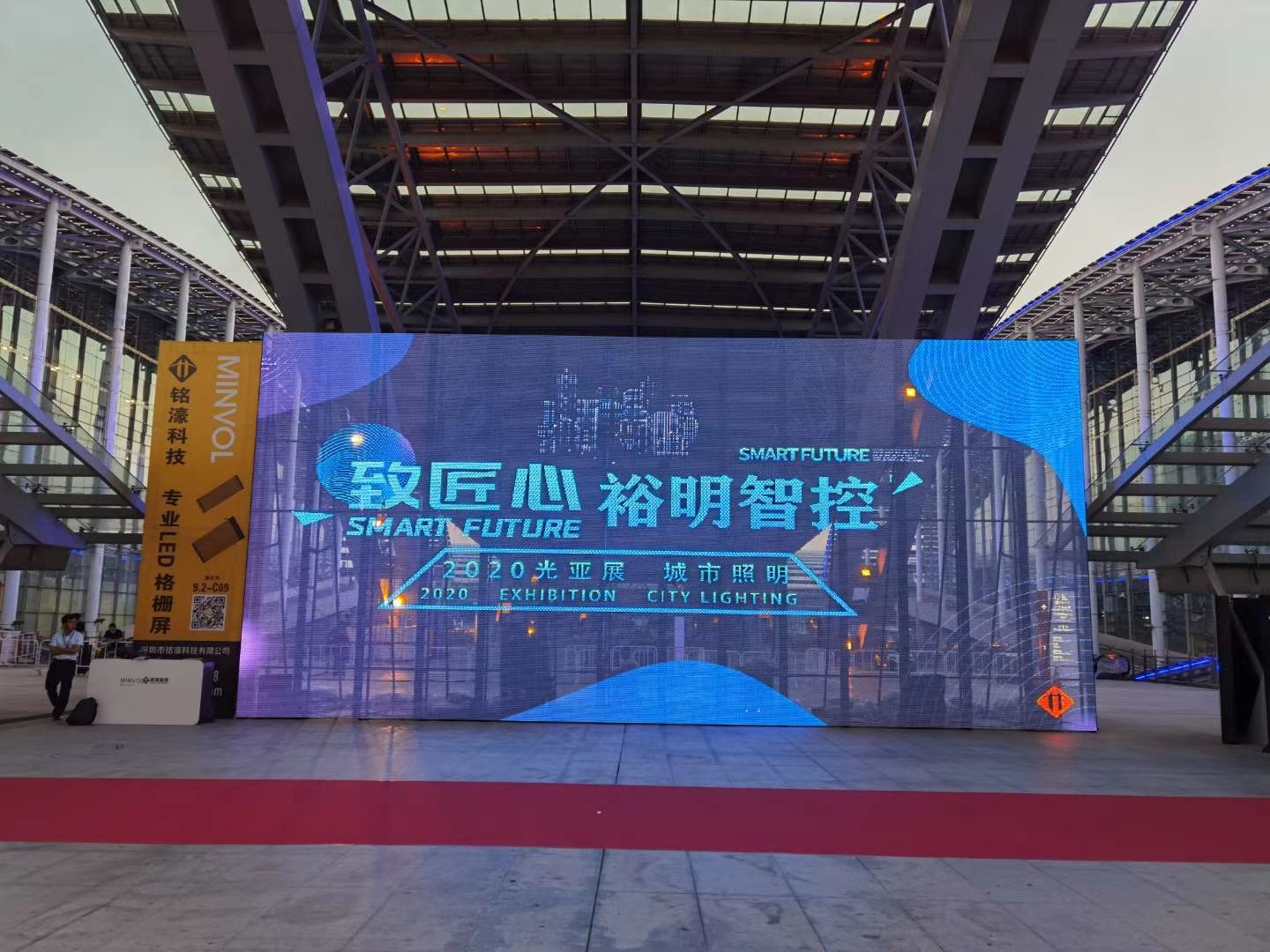

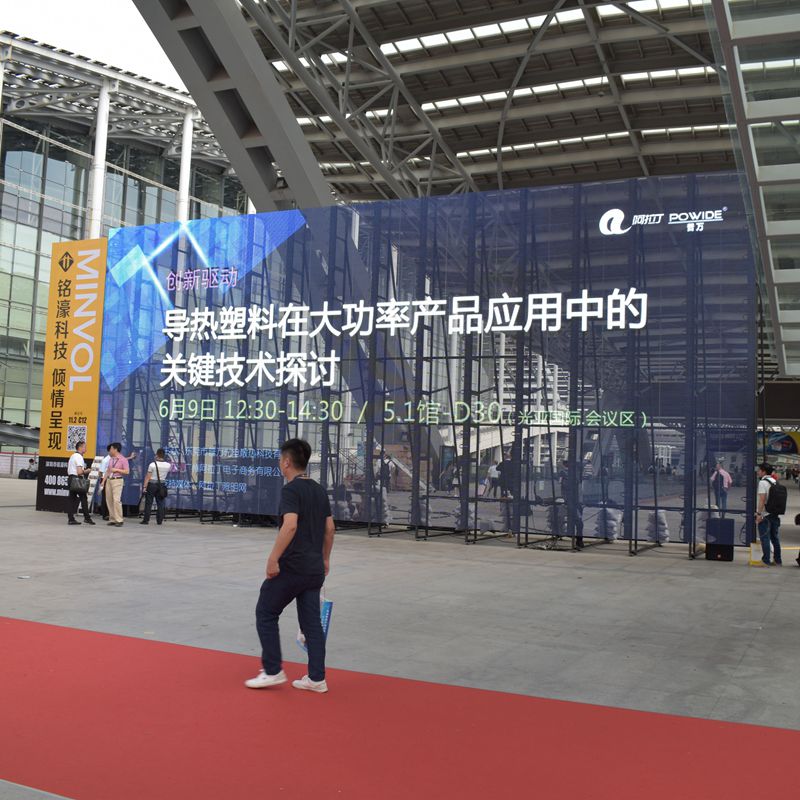

Exhibition pictures
