P10*20 Advertising Digital Signage Display 4608pixel/Sqm

Name: P1020 Advertising Digital Signage Display 4608pixelSqm
Brand: Minvol
Price: 1 USD

Buy cheap P10*20 Advertising Digital Signage Display 4608pixel/Sqm product

Brand Name : Minvol

Model Number : MH-ICS-P10X20

Certification : CE/RoHS/FCC

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 60sqm/day

Delivery Time : 15-25 Days

Packaging Details : Carton

Input voltage : AC85~265V

Brightness : ＞2000CD/sqm

LED quantity : 4608pixel/sqm

Maximum power : 400W/sqm

Tube chip color : RGB

Module size : 1500mm(L)*500mm(H)

Contact Now

P10*20 Advertising Digital Signage Display 4608pixel/Sqm

Product discription

LED smart screen no need add power supply in the middle, customized connectors to connect screens, wireless connection, beautiful and reliable. LED intelligent cloud screenadopts the form of the light bars assembled into the screen so that it has the advantages of good heat dissipation performance and light weight. Safety wire rope can be optionally added to fix the screen body.

Product parameters

Product Name:	P10X20 LED intelligent cloud screen
Item No:	MH-ICS-P10X20
Light Source Model:	2121
Size/Unit:	1500mm(L)*500mm(H)
Viewing Angle:	H120°/V120°
Power(W)/㎡:	400W/㎡
Average Power/㎡(W):	133W/㎡
Voltage:	AC85-265V
Pixel Pitch(mm):	10.4mm(H)*20.8mm(V)
Resolution:	144pixel*24pixel/Unit
LED quantity/㎡(PCS):	4608 pixel/㎡
Brightness(CD/㎡):	＞2000CD/㎡
Grey Scale:	65536
Refresh Rate(Hz):	＞3840Hz
Transparency:	＞86%
Weight:	2.5kg/Unit
Protection Grade:	IP43
Operation Temperature:	-20℃~45℃
Life Time:	≥50000 hours
Related Cert.:	CE RoHS FCC

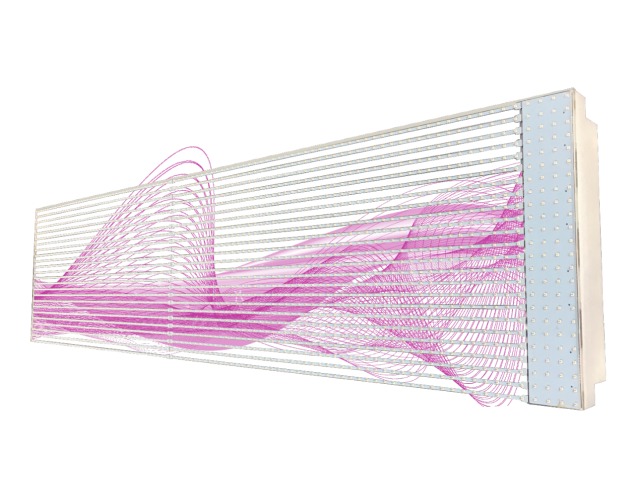

Product pictures

P10*20 Advertising Digital Signage Display 4608pixel/Sqm

Product Installation Schematic

P10*20 Advertising Digital Signage Display 4608pixel/Sqm

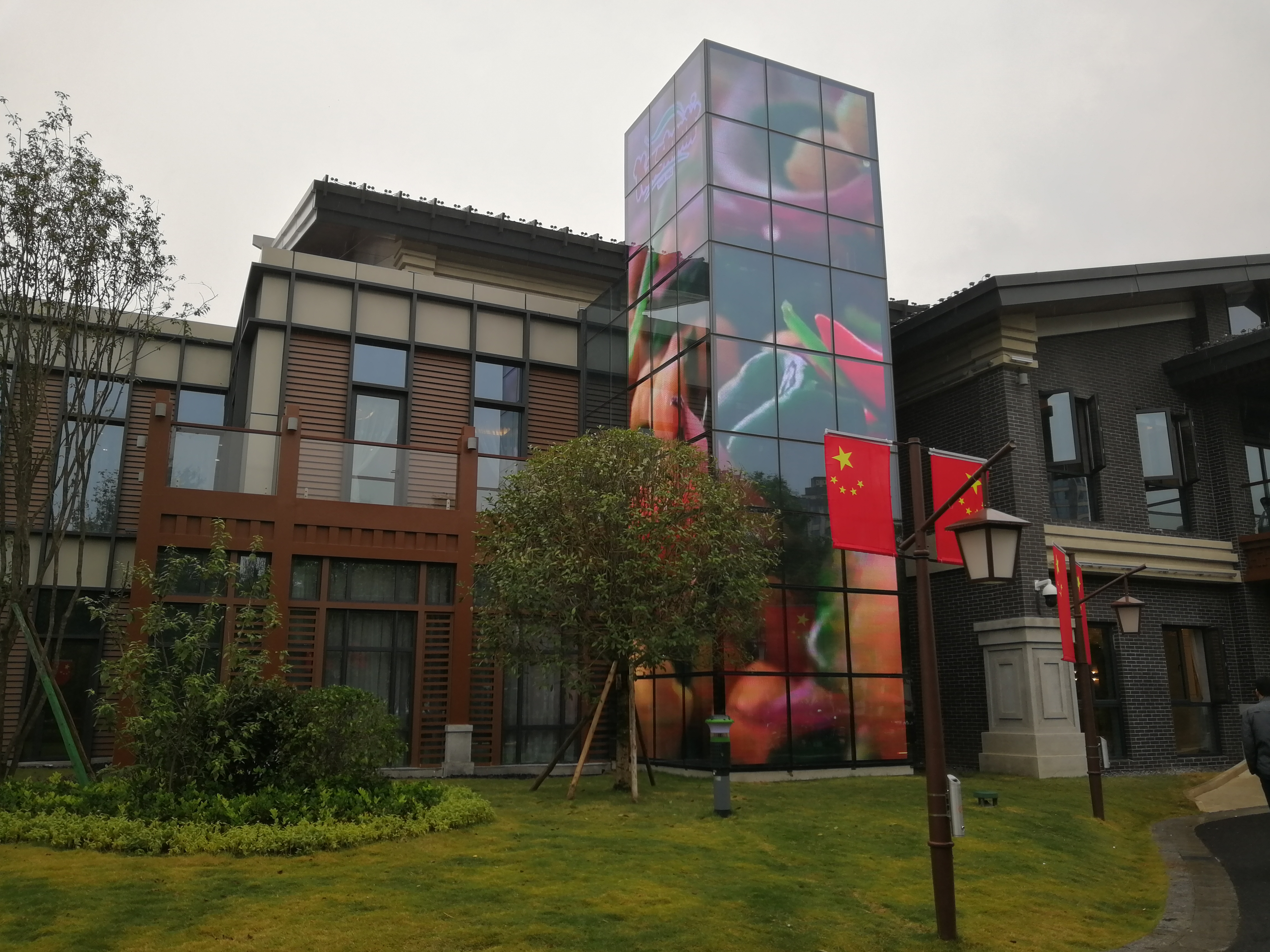

Projects pictures

P10*20 Advertising Digital Signage Display 4608pixel/Sqm
